designed by ABA to work FOR Whirlpool Brand Ice Makers and Refrigerators:
-----------------------------------------------------------------------------------------------------------------------------
These Harnesses and Adapters I designed to accommodate
you in using...
--Older ice makers with new refrigerators and also
--New Ice makers with Older refrigerators, as this person is doing.
Never before were you able to do this, until I made these harnesses and adapters
to be able to do so.
Here is the list below of all the Harnesses and Adapters that I design and
manufacture to work with
Whirlpool made Refrigerators and Ice Makers, old and new, so you can use your
old ice maker with a new refrigerator
and vice versa, you can use your old refrigerator with a new ice maker, you
have never been able to do in the past,
due to the connectors always being changed to different connectors, so the
"new" wouldn't plug into the "old"!
--------------------------------------------------------------------------------------------------------------------------------------------------
HARNESSES AND ADAPTERS
DESIGNED
& MANUFACTURED BY ABA IN THE USA!

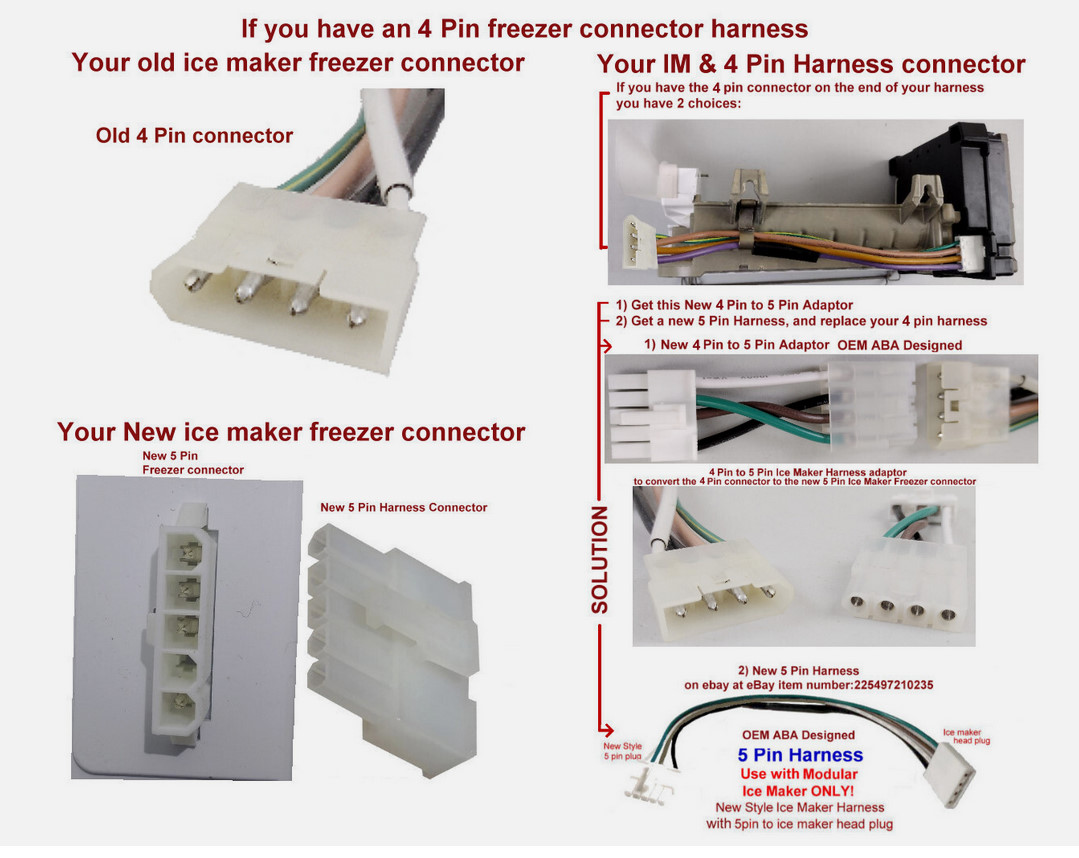

For 4 Pin Modular Ice Maker connector
with New 5 Pin Whirlpool Freezer Connector:
-------------------------------------------------------------------------------------------------------------------------

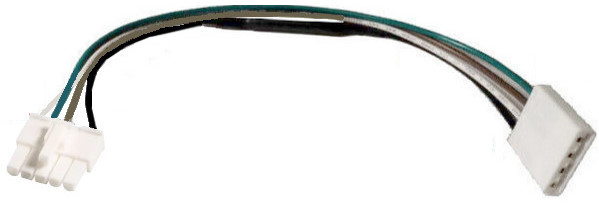

PART#: ABA1
HARNESS - ABA OEM -
New 5 pin Freezer connector to 4
Pin Modular Ice
Maker connector
$39.99

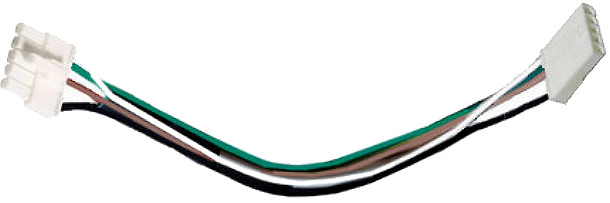

Jumper Harnesses:
for use with New W11517113 / W1152913 Whirlpool Ice Maker ONLY
------------------------------------------------------------------------------------------------------------------------------

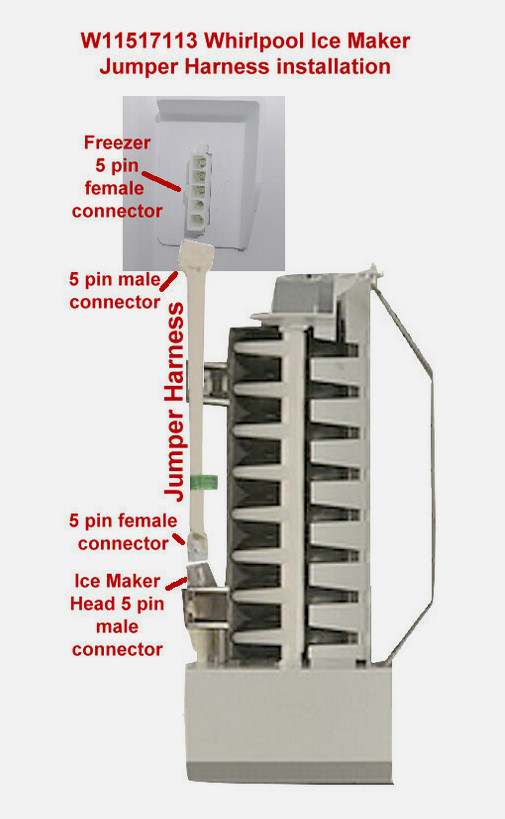

PART#: ABA2
"JUMPER Harness" - ABA OEM -
for New 5 Pin Freezer Connector Whirlpool Refrigerator
& New Ice maker Part# W11517113 / W1152913 ONLY!
5 Pin(New IM) connector to 5 Pin Freezer Connector
$39.99

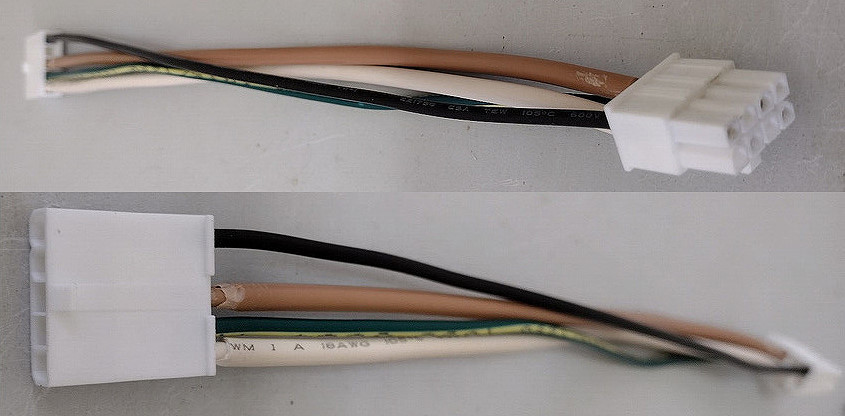

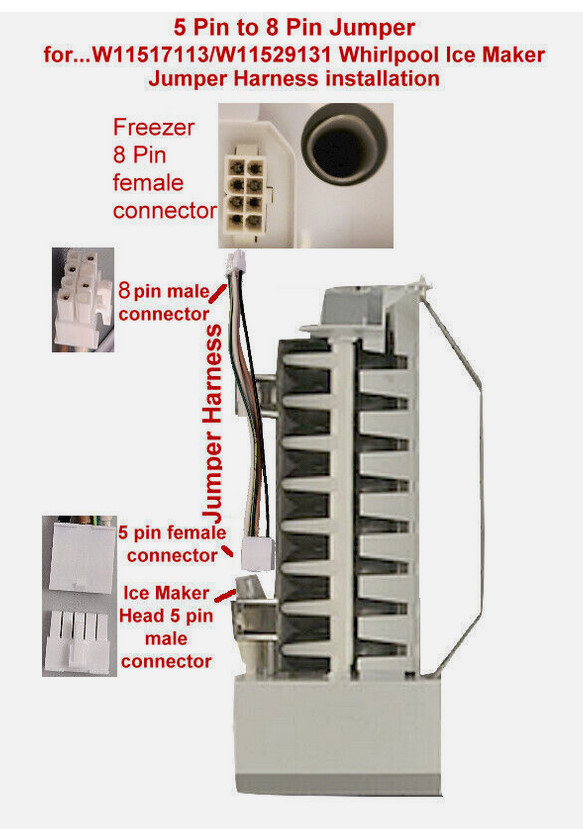

PART#: ABA3
"JUMPER Harness" - ABA OEM -
5 Pin(New IM) to 8 PinFreezer connector(older
ref)
use with New Whirlpool Ice maker W11517113 / W1152913 ONLY
$39.99

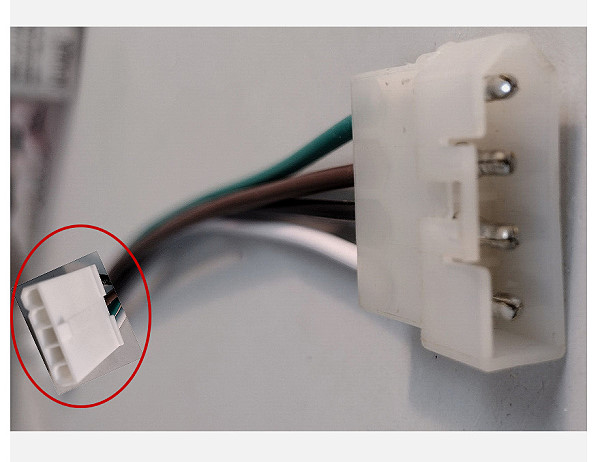

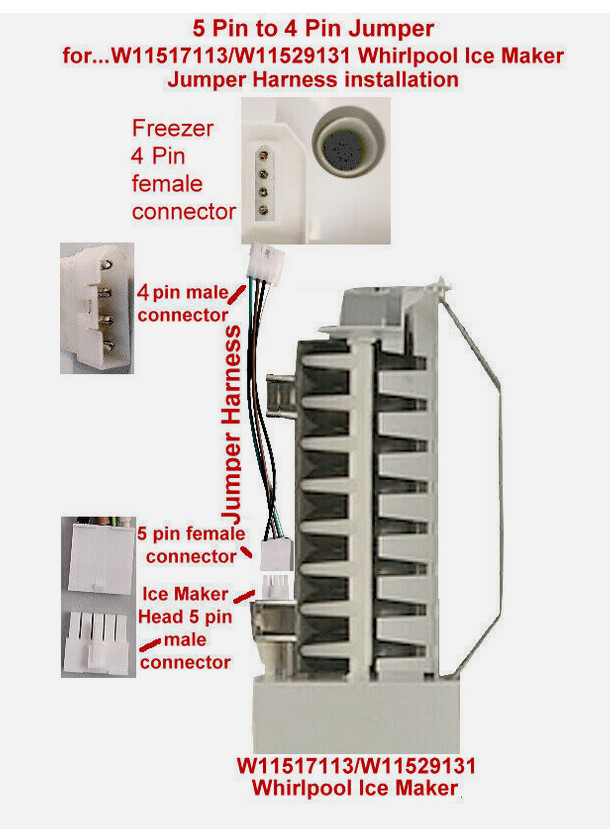

PART#: ABA4
"JUMPER Harness" - ABA OEM -
5 Pin(New Ice Maker) to 4 Pin Freezer connector(older
refrigerators)
for Whirlpool Ice maker W11517113/W1152913 ONLY
$39.99

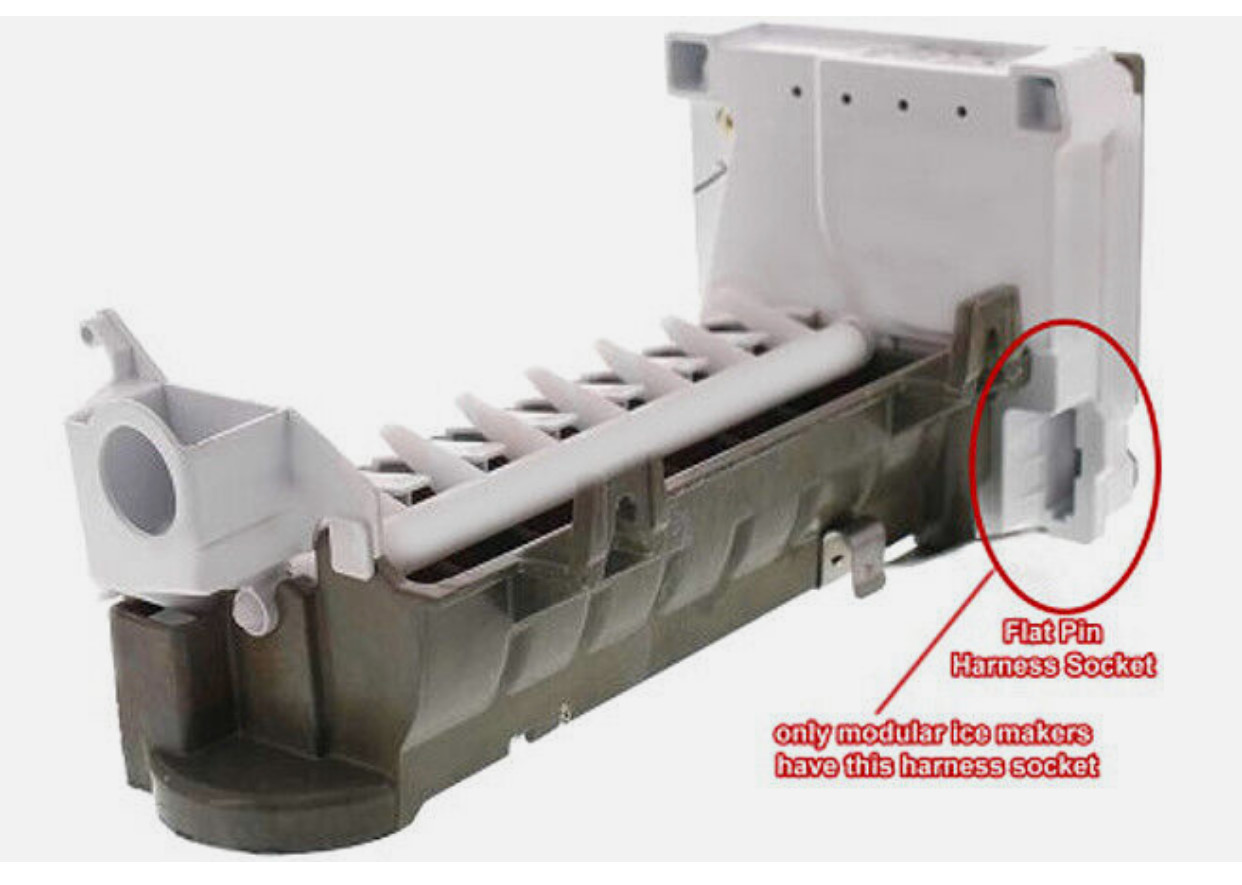

Harnesses for Whirlpool MADE Modular Ice makers
& Older Refrigerators/Freezers(ABA OEM USA):
-----------------------------------------------------------------------------------------------------------------------------------------------

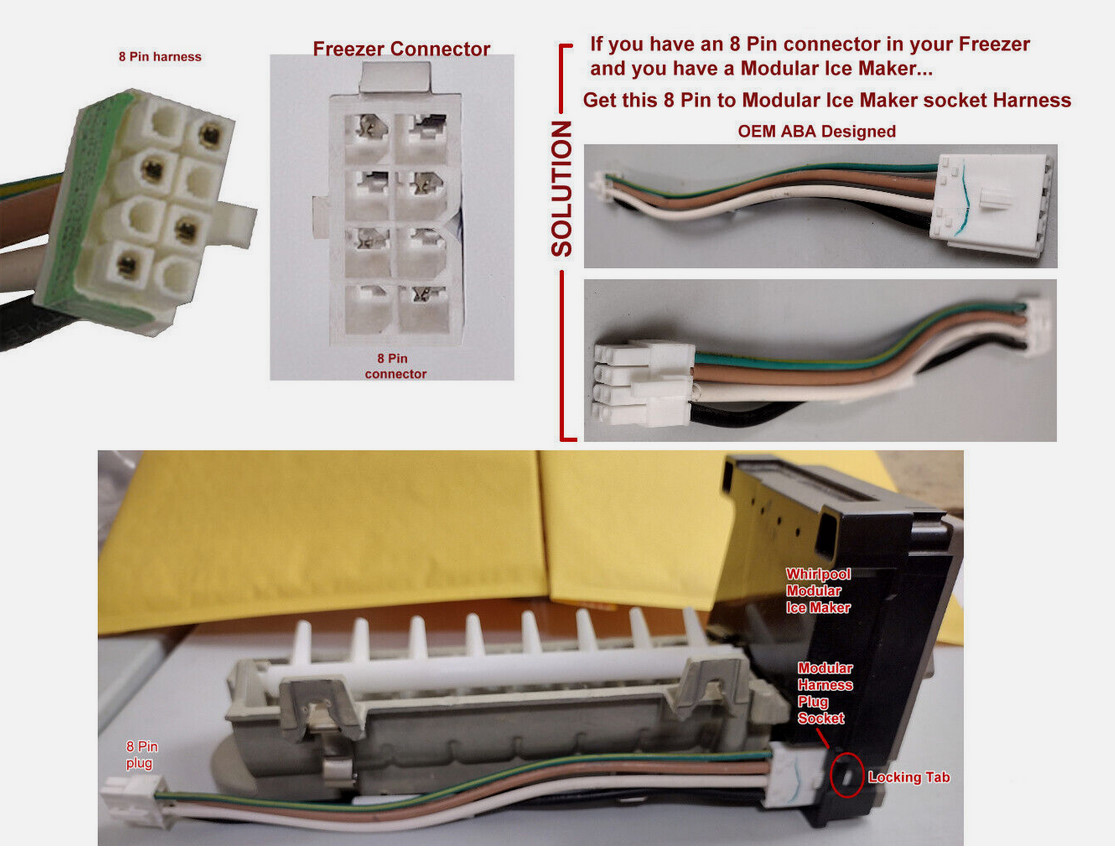

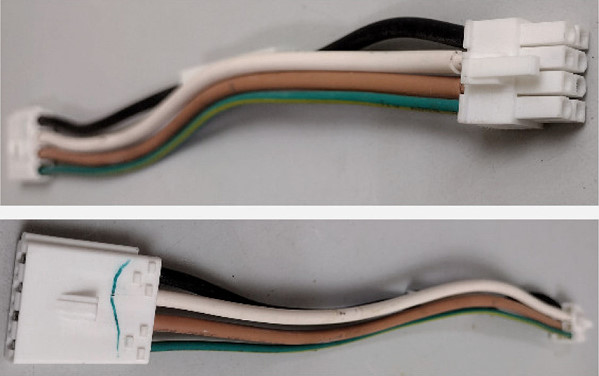

PART#: ABA5
HARNESS - ABA OEM -
4 Pin Modular Ice Maker connector to 8 Pin Freezer Connector
with existing Whirlpool Modular Ice
$39.99

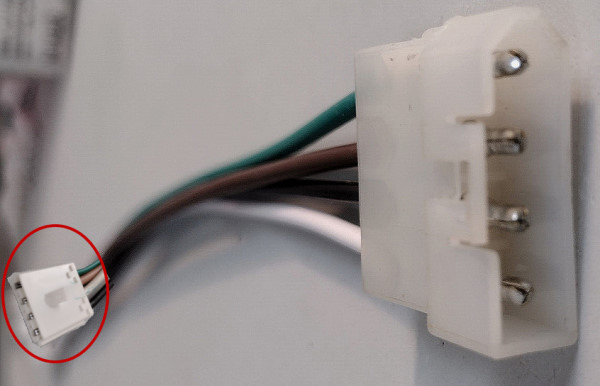

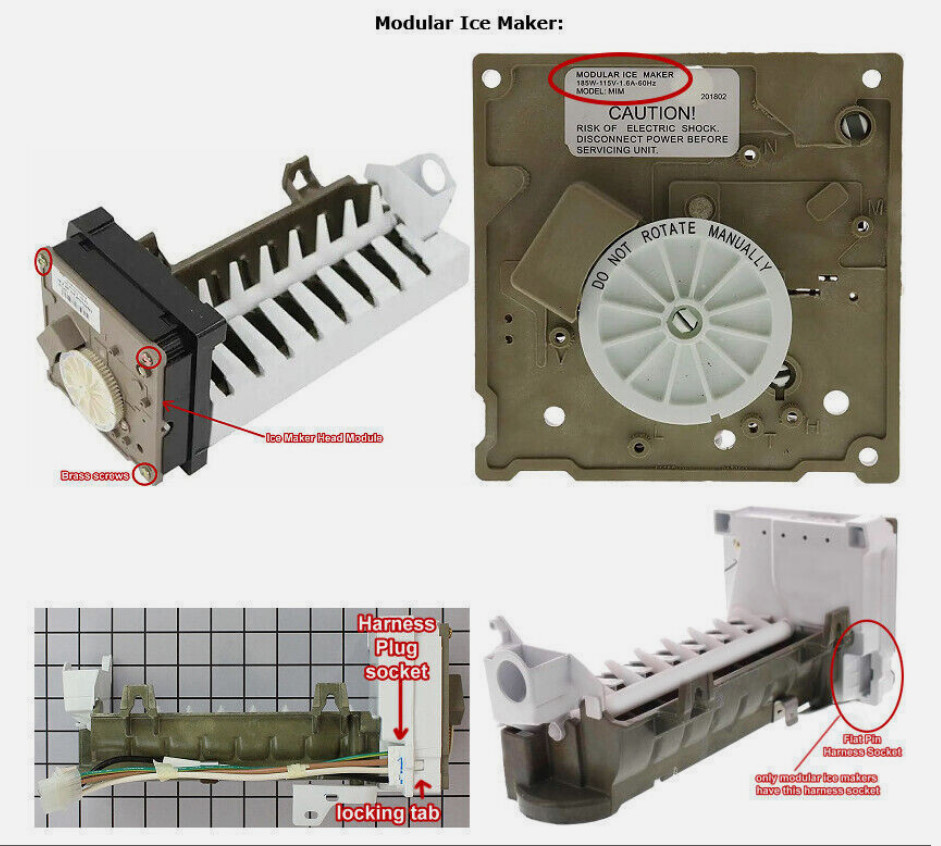

PART#: ABA6
HARNESS - ABA OEM -
4 Pin Modular Ice Maker connector to 4 Pin Freezer connector
Harness
w/existing Whirlpool Modular Ice Maker
$39.99
New Adapters: Older Refrigerator
Ice Maker Harnesses(Modular)

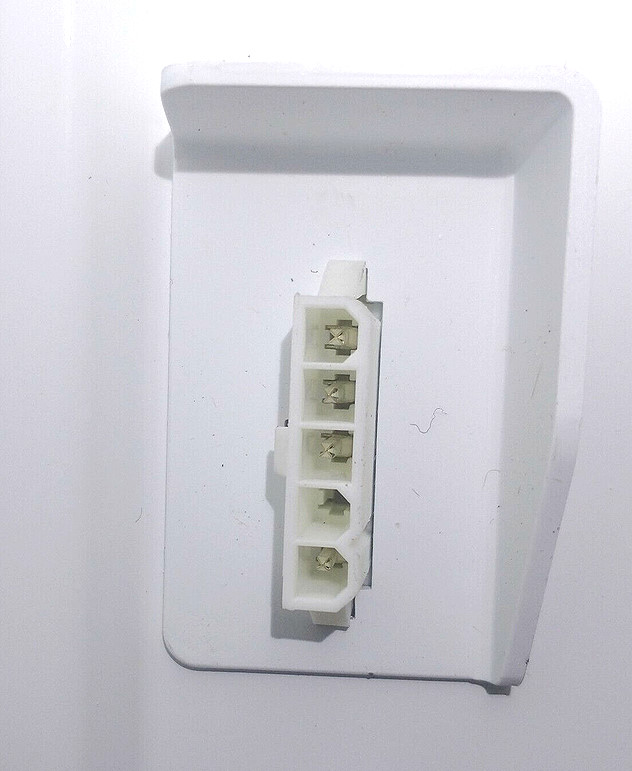

can now be adapted to plug into the New 5 Pin connector in New Whirlpool Refrigerators
---------------------------------------------------------------------------------------------------------------

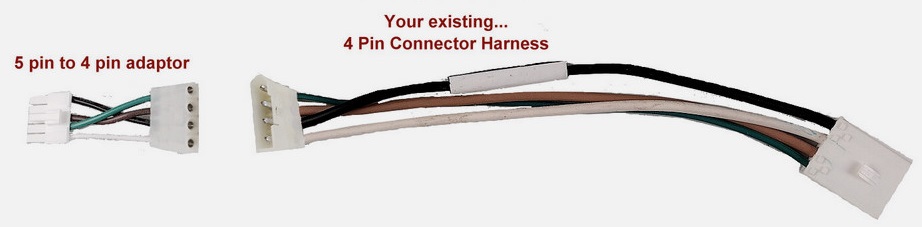

PART#: ABA7
ADAPTER - ABA OEM -
5 pin(Freezer Connector) to 4 Pin Harness connector(Older
Ref)
w/existing Whirlpool Modular Ice Maker
$29.99

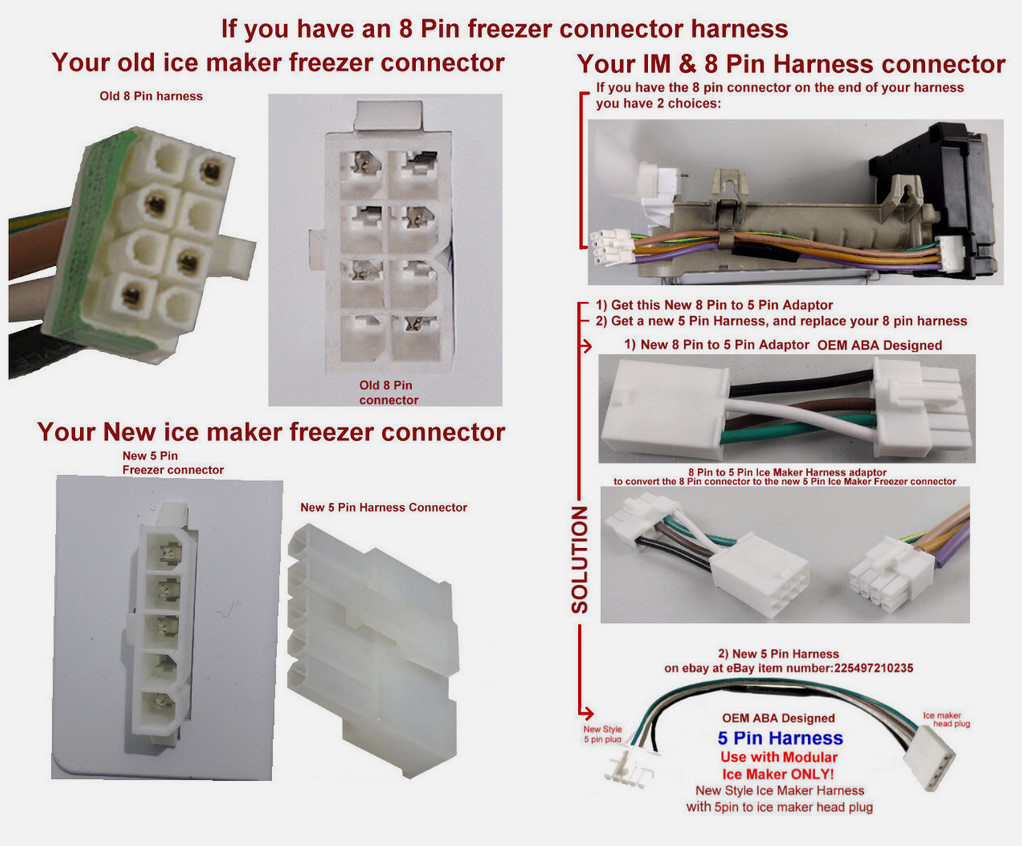

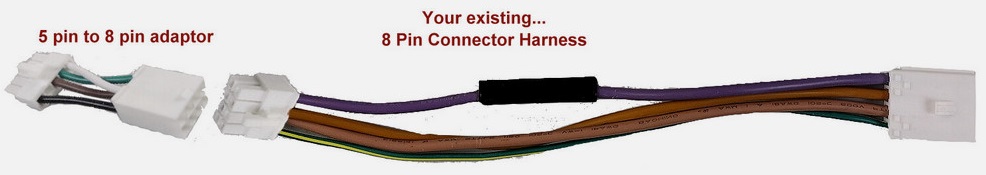

PART#: ABA8
ADAPTER - ABA OEM -
5 pin(Freezer Connector) to 8 Pin Harness connector(Older
Ref)
w/existing Whirlpool Modular Ice Maker
$29.99
Contact Us if you have any questions: Rtnoww@aol.com
